Spesifikasi Terperinci

• Dimensi

  add remove
  • Panjang:
    2370 mm
  • Tinggi Jok:
    675 mm
  • Jarak bebas ke tanah:
    115 mm
  • Jejak:
    104 mm
  • Jarak roda:
    1665 mm
  • Ban, spesifikasi depan:
    160/60R18,70V,BW
  • Ban, spesifikasi belakang:
    240/40R18,79V,BW
  • Kapasitas bahan bakar:
    18.9 l
  • Kapasitas oil (dengan filter):
    4.0 l
  • Bobot, saat dikirim:
    304 kg
  • Bobot, berfungsi baik:
    317.06 kg
  • Tire, type:
    Michelin® Scorcher 11 front and rear
• Mesin

  add remove
  • Mesin:
    Milwaukee-Eight® 114
  • Diameter:
    102 mm
  • Jarak piston:
    114.3 mm
  • Kapasitas:
    1868 cm³
  • Rasio kompresi:
    10.5:1
  • Sistem bahan bakar:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Pembuangan:
    2-into-2 staggered; catalyst in muffler
• Performa

  add remove
  • Metode Pengujian Torsi Mesin:
    EC 134/2014
  • Torsi mesin:
    161 Nm
  • Torsi mesin (RPM):
    3000
  • Horsepower:
    94 HP / 70 kW @ 4750 rpm
  • Sudut kemiringan, kanan (derajat):
    25.6
  • Sudut kemiringan, kiri (derajat):
    25.6
  • Fuel economy testing method:
    EU 134/2014
  • Fuel economy:
    47 mpg (5 l/100 km)
  • CO₂ emissions testing method:
    EU 134/2014
  • CO₂ emissions :
    129 g/km CO₂
• Powertrain

  add remove
  • Penggerak utama:
    Chain, 34/46 ratio
  • Rasio roda gigi (menyeluruh) Ke-1:
    9.311
  • Rasio roda gigi (menyeluruh) Ke-2:
    6.454
  • Rasio roda gigi (menyeluruh) Ke-3:
    4.793
  • Rasio roda gigi (menyeluruh) Ke-4:
    3.882
  • Rasio roda gigi (menyeluruh) Ke-5:
    3.307
  • Rasio roda gigi (menyeluruh) Ke-6:
    2.79
• Sasis

  add remove
  • Garpu Depan:
    Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
  • Shock Belakang:
    Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
  • Roda, jenis depan:
    Machined, Lakester cast aluminum
  • Roda, jenis belakang:
    Machined, Lakester cast aluminum
  • Rem, Jenis Rotor:
    Front and rear silver, Split 7-spoke floating rotors
  • Rem, jenis kaliper:
    4-piston fixed front and 2-piston floating rear
• Listrik

  add remove

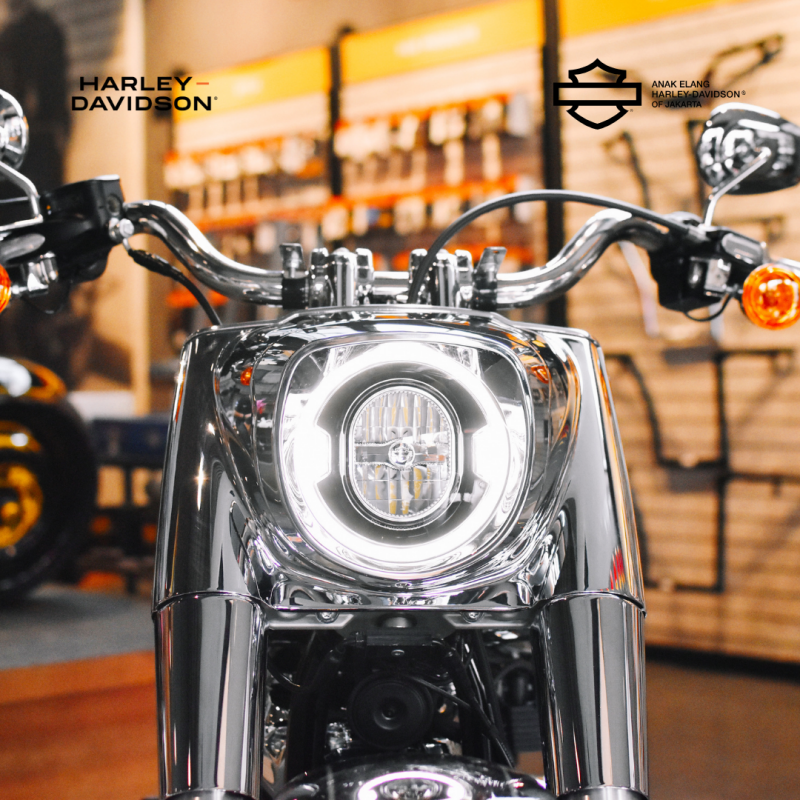

  • Lampu (sesuai peraturan negara), lampu indikator:
    All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED bullet front turn signals, Incandescent bullet rear turn signals
  • Alat pengukur:
    5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
